Adding Custom Dimensions

What are Custom Parameters?

Adding Custom Dimensions or Parameters can be really useful to measure specific events or themes on your website. Examples of this can be anything from a specific website section to screen dimensions or more content-oriented things, such as "Car brands", for articles featuring different car brands.

With this added information you can do more in-depth analysis of your Header Bidder (both technically and from a revenue perspective). So what Custom parameters you want to add (if any) is really down to your imagination and needs for your website.

Adding Custom Parameters:

This article is about web. To learn about how to use custom dimensions in Mobile Apps, please read about Prebid Mobile Extensions.

Custom parameters can be used to add more dimensions and filters in the reports, such as “Is user logged in”, “Is there consent”, etc.

What is needed is to create a function named RELEVANT_ANALYTICS_SETTINGS.getCustomParams. This function needs to exist before either Prebid.js is loaded or our tag is loaded. It will, however, not be called until after the first auction has completed.

<script>
 window.RELEVANT_ANALYTICS_SETTINGS = window.RELEVANT_ANALYTICS_SETTINGS || {};
 RELEVANT_ANALYTICS_SETTINGS.getCustomParams = function() {
   return {

     // A string (new report dimension + filter)
     'Is logged in': isUserLoggedIn() ? 'Yes' : 'No',

     // Number (new report filter)
     'Times visited': getTimesVisited(),
   };
 };
</script>

• If the value is a string it will appear as a new dimension + filter in the report.

• If the value is a number it will appear only as a filter in the reports, where you can filter by min and max values.

The system scans for custom parameters that have occurred during the last 2 hours when populating the report settings. There is also an up to 5 minute delay in these checks. Therefore there might be situations where you can’t find new custom parameters immediately in the report settings.

Avoid using string custom parameters where the different values will be in the millions, such as “user id”, “timestamp”, “pageview id”, etc. This will not work for reporting and it might also degenerate performance for all types of HBA reports on your instance.

To simplify the deployment of custom parameters you can use the JavaScript fields that will inject code in the HBA tags.

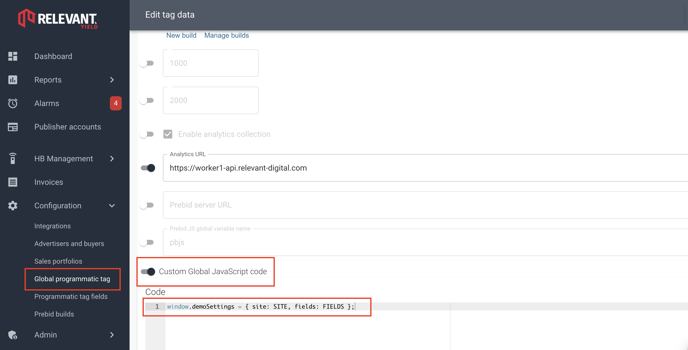

For code (e.g. a custom parameter function) that should be global for all publishers, override Custom Global JavaScript code under Configuration => Global Programmatic Tag:

screenshot_setup

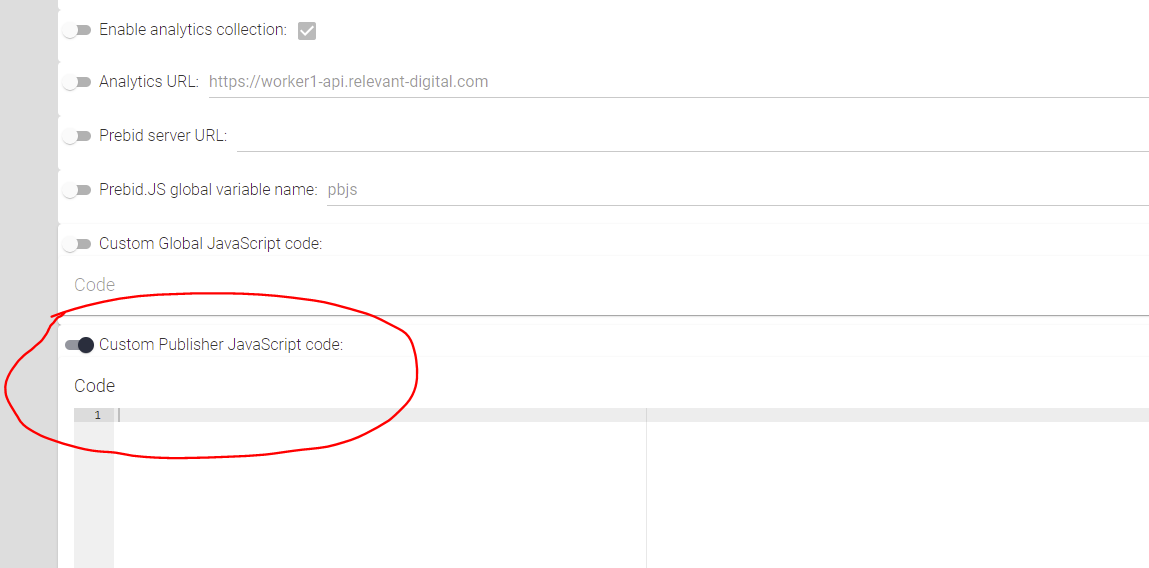

For code that should execute for a single publisher use Custom Publisher JavaScript code under Master Programmatic Tag on the publisher page for the publisher:

screenshot_master_programmatic_data

For code that should execute for a single site within a publisher use Custom Site JavaScript code under Programmatic Tag for the site. This is important if you want to use different custom parameters for different websites:

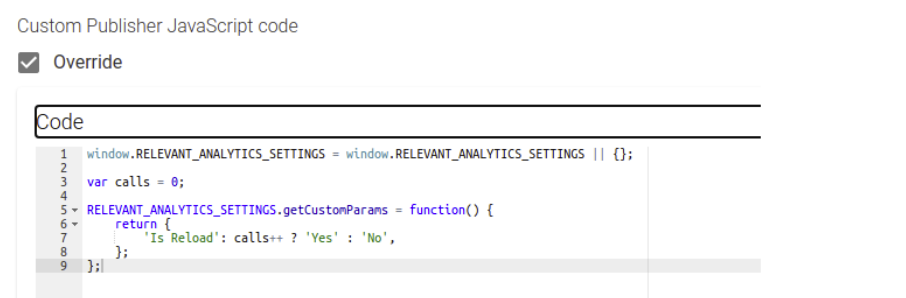

For example, this shows a simple implementation of a “Is Reload” custom parameter for a publisher (notice that this is just an example and will not work for all page designs):

All codes in the “JavaScript” boxes will run in a function scope, so in the example above the “calls” variable will not be global.

Combining Global / Per Publisher / Per Site Custom Parameters

The custom JavaScript code is executed in the following order:

1. Custom Global JavaScript code

2. Custom Publisher JavaScript code

3. Custom Site JavaScript code

This means that if you e.g. have global custom parameters and want to add publisher-specific custom parameters you can for example save the getCustomParams() function, get the result from it and combine it with the publisher specific parameters:

window.RELEVANT_ANALYTICS_SETTINGS = window.RELEVANT_ANALYTICS_SETTINGS || {};

// Save global/previous function
var prevCustomFn = RELEVANT_ANALYTICS_SETTINGS.getCustomParams;

RELEVANT_ANALYTICS_SETTINGS.getCustomParams = function() {

 // Get the global/previous parameters
 var res = prevCustomFn ? prevCustomFn() : {};

 // Then add more specific parameter(s)
 res['Publisher specific parameter'] = getPublisherSpecificParameter();

 return res;
};

Example: IAB consent custom parameter

Let’s take the previous example-code and expand it so that a “Has Consent” custom parameter is logged based upon the response from a TCF 2.0 compatible CMP.

window.RELEVANT_ANALYTICS_SETTINGS = window.RELEVANT_ANALYTICS_SETTINGS || {};

// Save global/previous functions
var prevCustomFn = RELEVANT_ANALYTICS_SETTINGS.getCustomParams;
var prevWaitFn = RELEVANT_ANALYTICS_SETTINGS.waitInit;

var consent;

RELEVANT_ANALYTICS_SETTINGS.waitInit = function(doneCb) {
  function initConsentData() {
     // Notice that the CMP “stub” code must have been loaded at this stage.
     // Else __tcfapi will not exist
     if (!consent && window.__tcfapi) {
        __tcfapi("getTCData", 2, function (data) {
           // Let's use Rubicon (vendor-id 52) as our "benchmark"
           consent = data.vendor.consents[52] ? 'Yes' : 'No';
           doneCb();
        });
        // "Failsafe timeout" after 2 seconds
        setTimeout(doneCb, 2000);

     } else {
        doneCb();
     }
  }

  // If needed wait for global/previous waitInit function
  if(prevWaitFn) {
    prevWaitFn(initConsentData)
  } else {
    initConsentData();
  }
};

RELEVANT_ANALYTICS_SETTINGS.getCustomParams = function() {

  // Get the global/previous parameters
  var res = prevCustomFn ? prevCustomFn() : {};

  // Add our parameter
  res['Has Consent'] = consent || 'CMP Not loaded';

  return res;
};

In this example we’re defining a waitInit() function that will delay sending any analytics even until the doneCb function has been called. This is used here to make sure that we receive the callback from the CMP (or times out) before getCustomParams() is called. We also consider that we might have already defined another waitInit() function and make sure to call it before we run our code.

Notice that “having consent” is a bit blurry as the user theoretically might have ticked/unticked different vendors and purposes in the UI dialog. So in the example we check a specific vendor (Rubicon) that we expect to have consent to using the default settings in the CMP.

Sounds tricky? Our support and Onboarders are there to help you, so you can always ask us for assistance regarding setting up the custom Parameters.
